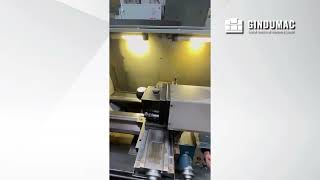

مخرطة المعادن Weiler E50

This Weiler E50 was manufactured in 2009. A robust horizontal turning machine featuring a swing diameter over bed of 570 mm and a spindle bore of 83 mm. It offers a bed width of 350 mm and a turning tool cross-section of 32 x 25 mm. Ideal for precise and efficient turning operations. Contact us for more information about this machine.
Machine Benefits
Qualitative Machine Benefits
Spindle diameter in the front bearing: 120 mm
Spindle bore: 83 mm
Inner taper of the main spindle: metric 90
Feed range longitudinal and planar: 0-20 mm/rev
Feed force longitudinal: 10000 n
Feed force planar: 7000 n
Input speed longitudinal/planar: 10/7 m/min or 5/3. 5 m/min
Metric threads: 0. 1-400 mm
Inch threads: 1/4" - 56 g/1"
Module threads: 0. 125 - 28
Technical Machine Benefits
Drive power (60% / 100% ed): 20/17 kw
Max. Torque at the turning spindle: 1600 nm
Gear stage i: 1-625 min-¹
Gear stage ii: 4-2500 min-¹
Bed width: 350 mm
Quill diameter: 80 mm
Quill stroke: 200 mm
Inner taper of the quill: mk 5
Turning tool cross-section (height/width): 32 x 25 mm
Spindle head according to din 55027: size 8
Extra Information
Machine still under power/
DP threads: 1 - 224/
Fixed steady rest clamping range: 12-150 mm / 120-270 mm/
Moving steady rest clamping range: 12-125 mm/
The machine has been working effectively in 1-shift operation since it was purchased/
The chuck incl. hard & several sets of soft jaws and the tailstock can be supplied as accessories/
Any associated tools could be discussed in the event of an order/
The footprint of the machine is 2.8m x 5.2m, the 2.8m already includes 600mm as a workstation/
All manuals are available.
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
Machine Depth: 3250 mm
Number of Axes: 2
